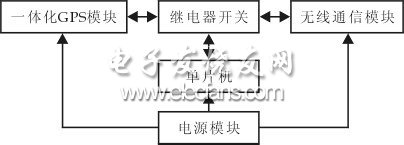

introduction A large number of car theft cases occur in China every year. According to the statistics of Beijing Municipal Traffic Management Bureau, there were more than 10 car theft cases in Beijing in 2006, which seriously endangered the property safety of the people and the number of related cases in recent years It has risen sharply, and the means of committing crimes have been continuously upgraded. The activities of committing crimes have developed towards professionalism, intelligence and grouping. In view of the above situation, this paper designs a car anti-theft system based on the currently widely distributed GSM (Global System for Mobile CommunicaTIon) network and high-precision GPS (NavigaTIon Satellite TIming and Ranging Global PosiTIon System) positioning technology. Through the operation of sending and receiving short messages, real-time monitoring of the vehicle's position can be realized, helping the owner to manage the vehicle, and can effectively recover after the vehicle is stolen. The system has high sensitivity, good real-time performance, and the system has a simple structure and low cost. 1 Working principle of the system As shown in Fig. 1, the system switches the communication between the microcontroller and the GPS module and the wireless communication module TC35i through the microcontroller control relay. When the owner does not need to monitor the vehicle, the serial port input of the single chip microcomputer is connected to the serial port output of the TC35i. When the owner leaves the vehicle, he manually drives the relay to pull in and connects the serial port input of the single-chip computer to the serial port output of the GPS. The system automatically collects GPS position data and starts real-time monitoring of the vehicle. When the system detects that there is a certain difference in the position information collected by the GPS module for two consecutive times, the relay restores the serial port input of the single-chip microcomputer and the serial port output of the TC35i, and sends a warning message "The vehicle is dangerous, currently located at longitude XX, latitude XX "to the owner. Figure 1 Block diagram of system communication module 2 System hardware composition This system uses a single-chip microcomputer as a microprocessor, uses GPS module to collect the position information of the car, and then realizes real-time communication with the car owner through the wireless communication module. The composition of the hardware part of the system is as follows: (1) STC89C52: This single-chip microcomputer has a low price, can complete the control tasks of this system, and has a high cost performance. (2) TC35i wireless communication module: TC35i Siemens industrial GSM module is an industrial-grade GSM module that supports Chinese short messages. It works in the dual band of EGSM900 and GSM1800, and its data interface can transmit commands and data in both directions through AT commands, which can be well achieved Information transmission. (3) Integrated GPS module: the XN934 series GPS module with model XN934 + is used, the operating voltage is 3.3V, the operating temperature is -40 ～ 85 ℃, the positioning accuracy is 5m, and its output interface is RS232, which can be directly connected to the single chip interface , And low energy consumption, small size, easy to integrate. (4) Relay: Matsukawa small relay is used, and its contact form is three-open and three-close. (5) Power supply: The system is powered by a 12V DC power supply, and the single chip microcomputer system and GPS module are powered by a voltage stabilizing system with a core of 7805. The block diagram of the system hardware structure is shown in Figure 1.
Generally, there are two kind of shapes: SMD LED (surface mount diode) and Through-hole LED.
470nm led is a aqua blue LED. Common aqua blue LEDs are like: aqua blue 470nm LED, aqua blue 475nm LED, aqua blue480nm LED and so on.
For the Through-hole Light Emitting Diode 470nm LED,
we
can customize the shape, the lighting angle, the number of emitting
source, the flat pin LED and braided LED. Such as: 5mm aqua Blue 470nm LED,
5mm aqua blue 475nm LED, 5mm aqua blue 480nm LED. 3mm aqua blue 470nm LED, 3mm aqua blue 475nm LED, 3mm aqua blue 480nm LED,
3mm Round blue LED ect.
For the SMD LED 470nm LED,
we
can supply dual-chip blue LED, three-chip blue LED, multi-chip blue LED, high voltage LED, flashing blue LED and variety of size
SMD LED. For instance: 3528 SMD aqua blue 470nm LED, 3528 SMD aqua blue 475nm
LED, 3528 SMD aqua blue 480nm LED.
2835 SMD aqua blue 470nm LED, 2835 SMD aqua blue 475nm LED, 2835 SMD aqua blue 480nm LED.
There are also have many other shapes to choose, like the
5050 SMD blue LED, the 5730 SMD blue LED ect. You can choose any one
of them for your requirement.
470nm LED 470nm LED, 470nm LED Strip, Blue 470nm LED, 470nm 3w LED Shenzhen Best LED Opto-electronic Co.,Ltd , https://www.bestsmd.com
There are many other shapes for your choose. Customized blue LED are available.
This 470nm LED, also called water blue LED. It's a fantastic blue LED, which is perfect for all kinds of LED lighting project.
