Since the launch of the Crimson Drive, AMD has thrown off the "driving bad" Flag, and has begun to move toward the other side of the tall, the forgotten professional card product line has also been a major update, the original FirePro product line was renamed more The Radeon Pro WX series is straightforward and understandable. The first three products are based on the Polaris10 WX7100, WX5100, and Polaris11-based WX4100. The blue color scheme is used uniformly to distinguish it from Radeon's red and black: (WX series product specifications from TPU) In October, the release of the new Macbook Pro product line for fruit was surprisingly not followed by the previous generation N-Generation A. Instead, it continued to use AMD's graphics cards, and it was also the Radeon Pro series! So try to do this on a Radeon Pro video card to put it on the agenda, coincides with the end of the procurement season, so readily reported a ... to bring everyone this absolute global exclusive WX7100 dismantling + comparative evaluation! Naturally, this order is the highest-end Radeon Pro WX7100, priced at 799 US dollars abroad, from the vendor to me through the layers of the next after about 6,000, taking into account the recent soft sister coins have been devaluing, as currently available to buy The strongest single-slot graphics card, this price is still relatively conscience ... Because it is taken together with other fixed things, so only simple and crude anti-static bags, accessories have several adapter but mixed with other cards do not know which is which, a treasure shop pictures in the PCI slot interface No, then look directly at the card... First of all, the first feeling that this card got in his hand is: exquisite! Pure metal shells and surfaces are definitely not the kind of plastic and metal veneer used for civilian cards. They are very heavy. See my heart on the back of a cool: no back plate! And PCB is similar to the design of RX480 public version, short card + radiator support... Side, because it is a single slot card, but the fan is OTES, so the outlet is arranged on the side. Interface, 4DP, properly. This is also the standard for most single-slot professional cards. Fan and power supply, since TDP is only 130W, a single 6pin is used. The blue R on the fan is very beautiful~ Original AMD LOGO. At present, all professional cards and original cards look like sapphire foundry. When it comes to single-slot cards, it is naturally necessary to find a single-slot N-card for comparison. The M4000 cannot be temporarily dismantled. First, find a previous-generation K4200. On the back, the K4200 is also a short PCB + heat dissipation mode. The difference is that the K4200 does not have a ventilated opening on the back. Compared with the interface, because the K4200 is older, it still retains DVI. Power supply, two cards with a single 6pin. K4200 is really a bit old and will not bully it, should have been a long-time professional card for the Polaris10's enemies GP106 is not a professional version, so we come with 8G memory for the Quadro M5000 as a contrast ~~~ The sturdy M5000 and the ingenious WX7100 are put together, the all-metal WX7100 does not fall in the momentum. On the back, even the M5000, which sells for more than 10,000 units, is a combination of a short PCB + long radiator. The professional card is mainly based on pragmatism, and it is totally different from the crazy style of the civilian card. Power supply, although the M5000's nominal TDP reaches the upper limit of 150W, it still has only one 6pin. Interface, because the M5000 is a dual slot card, a lot of space, so the 4DP + 1DVI design. The next step is to compare the RX480 with the Polaris10 core, and everyone should already be familiar with it. This RX480 is my own XFX version, with a backplane, in order to reflect the original taste I removed the backplane for comparison It can be seen that although it seems that the two cards are short PCB design, but the content is completely different, not everyone thinks that the so-called professional card is a civilian card brush a BIOS and then change the driver so simple ~ WX7100 PCB shorter radiator comparison Long, but the total length of the two cards is the same. Especially the output part, you can see the row of filter capacitors, the output quality of the professional card must not be covered. On the side, the WX7100 has no faith LOGO and the power supply has also been changed to the side. Which one do you prefer? The next thing is to die! hand! Demolition! Link, look around the whole network does not seem to have to split the two cards, I also fight for gold coins! Look at the shell first. As you can see, the M5000 is a large plastic shell. The WX7100 is a thin aluminum sheet with a visual inspection of about 1mm. Remove the shell to see ... this is the hands-on 2W dollars, if there is a short and two short I will GG From the radiator point of view, the M5000's TDP is higher, reaching 150W, and the space is relatively large, the heat sink is very small, people can not help but think of the RX480 version of the aluminum block ... WX7100 radiator is necessary More advanced. As you can see from the side, the WX7100 is almost full of single slot space plugs. Next is big! Demolition! solution! The M5000 consists of a PCB, a heat sink, and a heat sink. The front is provided with heat dissipation of the display memory by the heat dissipation frame, and the back side does not have the back plate to assist in heat dissipation. This... The power supply part, a very common 4 + 2 phase, professional card has always been adhering to the principle of "enough to use enough", but as a 1W card, this power supply is too shabby ... The core of the M5000, you can see the code is GM204-875, and GTX980 is GM204-400, the number is so bad, do not know what is worse... From the modern 7Gbps GDDR5 memory, each of the 8 front and back 8G capacity. The heatsink is true, even if it is so much better than the RX480 that 5 centimeter heatsink... 6pin powered fly line, very violent, also supports 8pin... Next is the exclusive secret photo of the WX7100! It is also composed of PCB + heat sink frame + heat sink. The WX7100's scatter-chips literally hung up in the sky. A massive copper bottom heat plate was more than the opposite. The aluminum plugs didn't know where to go! The power supply section is also a separate copper bottom heat sink, very kind. The heat dissipation frame mainly provides heat dissipation for video memory. The power supply part, a total of 7 phases, it is not clear how the specific allocation of ... Samsung's 8Gb 8Gbps GDDR5 memory, a total of 8 8GB capacity, no memory on the back. Flying line, there is no reserved 8pin power supply section. Contrast with the M5000, the material gap between workmanship is a little big... The back of the M5000 looks a bit better, but it does not give backplanes... We bought these cards to run 3dsmax, because I'm not specifically responsible for modeling. So in the end, the advantages of using professional cards over the use of game cards are not clear. According to the partner's statement, it's a lot of cool. The specific point is that anti-aliasing and multi-faceted dragging are smoother than game cards, FPS is not necessarily higher, but it is indeed smoother, rendering speed is faster, and anti-aliasing is also not available in game cards, given that 3dsmax is no longer using OGL. Switching to D3D, the gap in performance is even smaller, mainly due to the functional gap of forced castration. Many subjective feelings cannot be quantified, and the gap in data depends on Viewperf. This stuff is hard to find. It took a long time to find a 12.1 version that was relatively new. (By the way, 4G is packaged to compress nearly 50G, the compression ratio is amazing, it's all textures... It takes a long time to run with PC Mark...) testing platform: CPU: Intel Core i7 5960X Motherboard: ASUS X99M-WS Memory: 2X16G DDR4 2400 Test Graphics: XFX Radeon RX480 8G ASUS GeForce GTX1080 8G NVIDIA Quadro M5000 8G AMD Radeon Pro WX7100 8G In fact, originally intended to use the Lenovo Thinkstation P500 work, but the broken machine is along with the M5000, only a single 6pin, hand and no 6 to 8 switch cable, GTX1080 can not use, had to change another Machine, do not know if ECC memory has any effect on professional applications... Next on the score... The first is the Base's RX480 score. Frankly I don't understand more than half of these test items... Forgive me for being a research temp worker + brick dog... Then the results of the WX7100, you can see Cero-01 and medical-01 and after three scenes have risen to varying degrees, the most exaggerated is snx-02, soared 4 times The M5000's performance seems to be higher than the WX7100. GTX1080 results, the first few tests can not reflect the advantages to the back of a few professional card advantages are great, the highest snx-02 can even reach more than ten times, behind the sw-03 is also a fan of the RX480, but the M5000's The results are much more normal, there is no P5000 on hand, I do not know if it is a driving problem or Huang Huang really castrate so ... Bonus In the end, I took the time to run 3Dmark. The result is obvious. As the weakened version of the RX480 VS weakened version 980, the RX480 public version is equivalent to the M5000, and the WX7100 loses one's sensation. In addition, the WX7100's driver interface is simply dazzling, and Quadro's ugly home panel is of several orders of magnitude! Unfortunately, many functions have also been found in the traditional panel. There are not many functions available in the Crimson interface. I haven't used more advanced features, so I'll put them together and have a look. Finally, mentioning the temperature, it is a pity that the single-slot radiator is really a bit difficult, compared with the M5000's full load of 70 degrees, the case of the hot-skinned WX7100 has to have more than 80 degrees (currently there is no way to monitor the temperature of the WX7100 ), noise is also more obvious than the M5000, but it is certainly still stronger than the RX480 public version of the default fan settings (heat sink cost difference is too much now!!) In fact, there is no need to worry, originally the professional card is set to work 7X24 hours, before a few Fermi's Quadro 5000, 90+ years of operation all year round, but also rarely shut down, no sacrifice for several years, it touches Q2000 because of DP virtual Welding hangs a piece of... old yellow door! Well, in fact, I'm not a user of professional cards. Just from a quantitative point of view, the WX7100's price/performance ratio is still quite high. The test performance gap is not the same as the M5000, which is twice as expensive. Obviously, the upgrade from the game card is huge, and the new Crimson driver also brings greater stability. However, AMD wants to regain lost ground in professional cards. It is still a long way to go. The gap between the professional card market is only true 0 and 9. Many children do not know that A card and professional card... Hope to be slow from Radeon Pro series products. Change it slowly... Really want to measure the Radeon Pro 460 fruit, but can not afford to buy their own units will not buy .... In the end, I just want to say: When is the single-slot hot plate 480/NANO/VEGA? ! I must buy! I must buy! I must buy! Pocket Type Nickel Cadmium Battery
The nickel–cadmium battery (NiCd battery or NiCad battery) is a type of rechargeable battery using nickel oxide hydroxide and metallic cadmium as electrodes. The abbreviation NiCd is derived from the chemical symbols of nickel (Ni) and cadmium (Cd).
Pocket Type Nickel Cadmium Battery capacity range is from 10ah to 1200ah, have three series: low discharge rate, medium discharge rate and high discharge rate.
Nickel Cadmium Batterie,Nicd Battery Pocket Plate,Railway Nicd Battery,10~1200Ah Nicd Battery Henan Xintaihang Power Source Co.,Ltd , https://www.taihangbattery.com

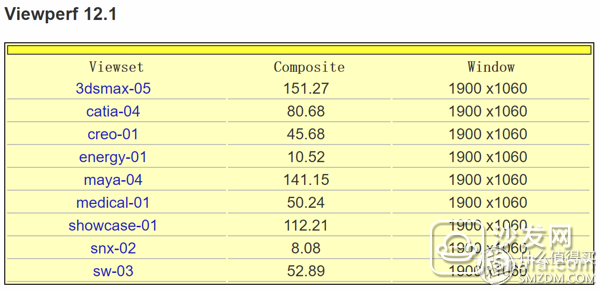

Horizontal contrast, you can see some professional application of professional card performance advantage, and several applications based on D3D performance gap is the absolute power difference, more differences are still reflected in the function.

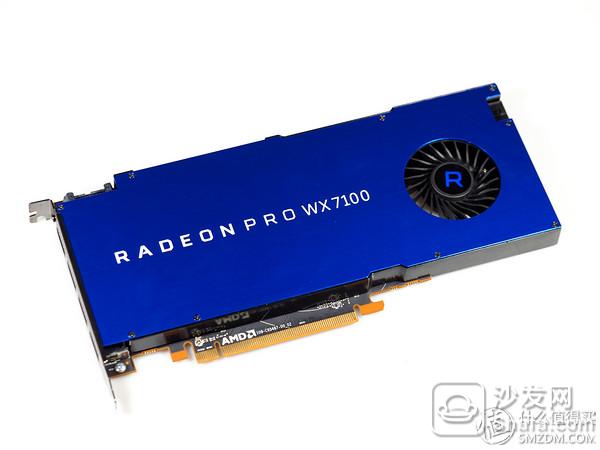

The only dismantling of this site's first sun - Let's be PRO, AMD Radeon Pro WX7100 professional graphics evaluation
Preface
