Monitor family health Skyworth E800 health cloud TV evaluation

[PConline Review] Skyworth recently promoted healthy cloud-enabled TV, taking into account the daily health of home users, reflecting the new value of flat-panel TVs. At present, the high-end product 42E800A of Skyworth Health Cloud TV came to our evaluation room. It is equipped with the IPS screen, borderless design and Android4.0 system provided by LGD, and the health cloud function can monitor the health of family members for a long time. Strong practicality. So what exactly does this high-end health cloud TV perform? The Skyworth 47E800A will be reviewed below.

Skyworth 42E800A Picture Series Evaluation Forum Quote

List of hardware parameters

In terms of picture quality, because Skyworth E800 uses the IPS LCD panel provided by LGD, we still have some expectations for its image quality performance. In addition, due to the Contex-A9 dual-core CPU and dual-core Mali 400GPU with a frequency of 1Ghz in healthy cloud, Android4.0 platform, and online video, it also has relatively good configuration on hardware.

Design Appreciation

From the overall appearance point of view, Skyworth E800 uses a very simple rectangular shape, the official publicity for the "frameless hard screen", we can see that when the screen is lit, there is still some space around the screen, but the border is relatively Narrow. The base adopts a special circular arc shape. The 42-inch model has a 61mm thick body, and a 55-inch model is 54mm. This is believed to be caused by the thicker speaker unit at the bottom, but the overall thickness does not reach the 30mm value of Samsung's high-end LCD TVs.

E800's border is worth mentioning, the official said it is "borderless" design, the reaction we can see in the physical, the left and right sides of the border are used only about 2mm thickness of the metal frame package, the screen above the border is slightly Radial wrapping, although the border is narrow, but there are black panel extensions around the screen. The side frame is decorated with metal trim, the overall material is black metal brushed, has a good texture.

The lower border has a certain width and is the widest part of the four sides. This is because the GIP (Gate-In-Panel) technology allows the boundless hard screen to hide the chips originally placed in the bezel inside and below the panel. This technology, although the E800 seems to have a certain width, closes the screen on the TV. It shows very good integrity.

On the lower border there is a "Skyworth" brand LOGO, and there is no special design. Here you can see the metal brushed details of the border.

The design of the E800 base is similar to that of many models of the same brand. It is an arc-shaped ring shape, and the visual sense of the E800 subtly reduces the visual size of the base and also ensures the uniformity of the force. This base is made of metal material, quite feel, brushed metal material is also consistent with the overall shape of the TV.

The back cover is made of black engineering plastic material. The body tag shows that the E800 is produced by Skyworth's factory in Shenzhen. At the same time, it can now enjoy the 400 yuan energy subsidies provided by the country.

In terms of remote control, Skyworth E800 is equipped with a remote control. The main feature is that the numeric keypad has the function of a touchpad. In the case of a simulated mouse, the touchpad of the laptop can be operated. The buttons are equipped with homepages, menus, and back buttons that are common to Skyworth Health Cloud TV.

In terms of interfaces, as the high-end TV E800 has almost all mainstream interfaces, including HDMI × 2, USB interface × 3, AV simulation × 1, color terminal × 1, network port × 1, VGA interface × 1, SD card slot × 1, CA card slot (digital TV) × 1, optical audio × 1 these interfaces.

In appearance, Skyworth E800 inherited the features of the already listed products such as the E700, using a right-angle shape and circular ring base. The overlying border portion is improved to a design that surrounds only the sides, so that the appearance is simple and the frame is minimally cumbersome. In other respects it is quite satisfactory.

[Online shopping discount price] 7037 yuan, click to buy>>

Detailed data quality measurement

First of all, we use the evaluation room professional instrument to carry on the detailed test to Skyworth E800. During the test, we adjust the Samsung E800 to the standard image mode, and the backlight is adjusted to the brightest. We first record the measured data in the following table, where the flatness brightness reaches 234.45cd/m2, which is a normal level in LCD TVs. The more noteworthy values ​​are ANSI contrast and color saturation, which will be explained below.

After testing by the color analyzer, it can be seen that Skyworth E800 achieved 73.06% NTSC color gamut performance, which is similar to most high-end LCD TVs. In the arrangement of the pixel points photographed in the macro state, through the >>> scale arrangement, it can be clearly seen that the E800 adopts the IPS panel provided by LG Display. This result was also confirmed in another dismantling article. This IPS panel was manufactured by LGD's 8.5-generation LCD panel production line in Guangzhou, but here we cannot simply judge it as an S-IPS screen. Or wait for Xiao Bian to ask the official technical personnel to understand.

The E800 is not serious under the black screen, but there is a more obvious feature. Xiao Bian thinks that the black black of this TV can't go on, although there is a clear interpretation in terms of gray scale and black level test, etc. There will be a black paste into a group performance.

Here measured 837.32:1 of the ANSI contrast ratio is a high ratio, this value also shows that the backlight distribution of the TV panel is even, there is no obvious picture inequality problem. The other side shows that the LG panel provided by LGD has performed well, because the backlight components are also produced by the panel manufacturers. The components such as the E800's LCD panel and backlight module are all provided by LGD.

ANSI contrast refers to dividing the TV picture into 16 blocks of black and white color and testing the center brightness of these blocks separately to obtain more reference picture contrast. Because the dynamic contrast ratio marked by the manufacturer generally refers to the ratio of the full white screen to any point of the full black screen, because many TVs adjust the backlight brightness according to the screen content, so the dynamic contrast reference value is low, and ANSI can reflect TV more realistically. Contrast.

In terms of double speed, Skyworth officials did not give a clear numerical value, so we used the Canon 50D's screen shot as the standard, and the shutter speed was adjusted to 1/200 second. According to the screen shot, it can be seen that the dynamic performance of the E800 is normal, and there is a certain degree of ghosting at the windows. The main problem of this phenomenon is that Skyworth did not use interpolation frames to reduce the residual image processing methods.

TV power consumption measured

In terms of power consumption tests, the E800 performs well and its power is around 71w. However, it is strange that the E800 remains at the 69w level in the all black state. This shows that the evaluation E800 is displaying a full black screen. The brightness of the backlight is not turned down, and the LED backlight source is the power consumption of the TV. This is the reason why the dynamic contrast value of the prior art would be relatively low.

Quality test real shot map

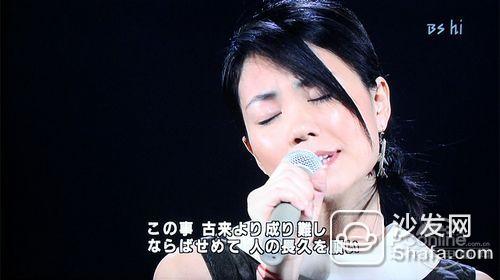

The following also provides some screen shots of the E800 when playing a Blu-Ray tester, which can give you an overview of its picture quality. Including full HD signal, grayscale, color, contrast, black level and color test screen.

Worth to say, the E800 performed well in displaying gray and black levels. It can be seen that the details of the shadows are clearly interpreted. In addition, the texture of the black silk shows excellent performance. The golden color, which is difficult to represent, also has a good interpretation. It can be seen that the LG panel provided by this LGD performs well and the color display does not have a problem of overly bright color cast.

Android4.0 platform

Skyworth E800 uses a system modified by Android 4.0. The overall layout is simple and easy to understand. It is divided into the following system default programs and the top common programs. The default program includes applications mall, my application, online cool shadow, and cloud from left to right. Platform, web site navigation, health cloud and health campaign. At the top left of the TV interface, there is a real-time video signal display in the form of picture-in-picture. It is more practical when watching TV.

Android4.0 system main menu

The settings menu has images, sounds, networks, and other settings that can basically meet the various adjustment requirements of the E800. The E800 supports wireless Wifi signals and can also support the wireless transmission function of Android portable devices.

setting menu

Application trial

If you need to choose your own downloaded program, you need to click on my application to select more applications.

My application menu

Application Mall

Skyworth E800 has a built-in application mall program, which can download compatible Android programs. There are about 70 applications and more than 40 games, which is not much more than Android's massive application.

Application Mall

Fortunately, there are commonly used Android programs such as Taobao, Dazhong reviews, Sina Weibo, and PPTV, which can basically meet the needs of users.

Click to download can be automatically run in the background, after the download is completed, it will automatically pop up the program installation box, you can see that the installation interface is not customized, and the Android tablet display interface is similar, but the full HD interface, the font display is smaller.

Taobao client

It can be seen that this downloaded client is not much different from the tablet version, but the fonts and keys have become very small. Fortunately, we can use the touchpad to simulate the operation of the mouse, basically still available.

Taobao client

Taobao client

Only the appearance and customization are not enough.

Sina Weibo Client

Sina Weibo is also in a similar situation, the official did not deeply customize it.

Sina Weibo Client

Sina Weibo Client

The operation function can also be basically realized by simulating the mouse.

Browser program

Skyworth E800 comes with a browser software. This software is customized and can be operated with the touchpad of the remote control. Simulating a mouse click or sliding pages is quite smooth.

Browser program

Also worth mentioning is that Xiao Bian tried to open the Youku website, the browser is compatible with the video playback, it should be based on HTML5.

Support HTML5 video playback

Support HTML5 video playback

Support HTML5 video playback

Support HTML5 video playback

As a result, the usefulness of the browser has improved a lot and the resources of many online video websites are viewable.

Feature: Health cloud function trial

Every television manufacturer has different understandings of smart TVs. Skyworth's idea is probably to integrate health management into television. The health cloud features unique to Skyworth roughly include that users can save measurement data to personal databases on the cloud platform, and can view historical data changes curves at any time, so that users can keep abreast of family members' physical health at any time. The E800, as a high-end product in Skyworth Health Cloud TV, naturally has a richer function in this function.

Cloud user selection

In the settings, we can add family members and set related information for them.

Fill in user's body information

After the setting, we can start the function of Skyworth TV. Among them, six tests include weight, fat, Xie Ya, color blindness, vision and psychological tests. Color blindness, vision, and psychology can be tested directly by clicking on the program.

We need to use additional accessories for body weight, fat, and blood pressure. We didn't receive these accessories for this evaluation, so we can't try it. However, before the author had experience in the physical store, the sensitivity of these test instruments is still quite high, and there is a good degree of practicality.

In addition, the most important function of healthy cloud function is long-term monitoring. If you can keep monitoring the body for a long time, you can get a health curve and obtain reference physical parameters.

Somatosensory games

Due to the health cloud function, somatosensory games are also indispensable. Skyworth E800 has a variety of somatosensory games built in, but this requires related somatosensory accessories.

Built-in common table tennis games, music drums and body-building yoga games.

3D screen real shot

Earlier we have learned that the E800 uses the IPS panel solution provided by LGD, so 3D TV is also a common non-flash 3D technology for the LG series. The advantage of the polarized 3D technology is that the 3D image does not flicker like the active shutter 3D. The disadvantage is that the resolution of the screen is lost. 3D glasses shape, due to the use of passive 3D technology, glasses are done very light, but the active shutter 3D glasses volume has also made great progress.

In the 3D picture test, we used half of the 3D glasses and half of the naked eyes. You can understand more clearly the display effect of 3D pictures and the loss in brightness and resolution.

You can see that there is a loss of brightness through the 3D glasses, but the TV will increase the brightness of the TV by default and have no effect on the look and feel. Depth of field has a relatively good performance, but careful observation will find the lens on the vertical stripes (or stripes), which is the loss of resolution, but fortunately when watching full-HD Blu-ray 3D movies, there will be no significant sense of loss of screen.

Online video

Skyworth E800 has built-in an online video program called “Cool Online”. Due to the use of Ulead Video and BesTV online video resources, richer video content is built in, which can basically replace a high-definition player.

In the quality of high-definition online video, Xiao Bian think there is still a good resolution, it should be between 480p and 720p, have a high viewing effect.

In addition, this online platform also provides on-demand 3D video on demand, using the output of both left and right screens at the same time, from the TV to 3D screen display, so the vertical resolution should be reduced by half.

The actual viewing still has a certain viewing value. Although it does not reach the HD level, it is sufficient as a supplement when the usual 3D film source is insufficient.

Blu-ray HD video

Here we chose the "micro world" Blu-ray movie. Through the full HD picture, we can have a clearer understanding of the picture quality of the TV. Among them, "Microworld" emphasizes the natural color, and it can be seen that the E800 excels in color interpretation.

However, on the restoration of facial skin tone, this TV is a bit too red. However, because it is a high-quality IPS panel, the picture quality is still at a relatively high level.

USB streaming media trial

Streaming media playback has always been a good area for domestic brands, where the E800 is compatible with common network streaming media formats using the Android 4.0 platform, and most of the high-definition video can also be competent. One of the video format support, Skyworth E800 support avi, mpg, ts, mkv, mov, dat, rm, rmvb, flv, mvc format has basically covered most of the current mainstream formats.

Only one 1080p video with the MKV suffix name cannot be played, and the compatibility is better.

The playback of the image also continues the Skyworth TV's UI, enabling zoom, slideshow and other common operations.

Skyworth E800 Price Analysis

At present, the 42-inch Skyworth E800 online offer is generally around 7,500 yuan, 47 inches at 8,600 yuan, and 55 inches at 13,600 yuan. This price is still high on the market, and there is no price advantage compared to the Sony HX850 in the 55-inch product. This is mainly due to the new product. Although equipped with high-quality IPS panels, health clouds and other functions, but compared with the foreign brands of gold signs are still slightly less than. I hope to see more reasonable pricing for the E800 series in the future.

Skyworth 42E800A Picture Series Evaluation Forum Quote

Evaluation Room Summary

Editor's summary: After detailed evaluation, Xiaobian feels that Skyworth E800 has some advantages in image quality and health cloud functions. Equipped with a high-quality IPS panel, while achieving better picture quality, it may be a reason for high prices. After all, with Korean TV manufacturers with vertical capacity, the price adjustment of domestic TV is often even smaller. In addition, the function of using a metal edge and "borderless hard screen" design reflects the television's certain workmanship. The function of healthy cloud can monitor the family's health for a long time. For people who often ignore the body's sub-health, Skyworth Health Cloud TV has obviously higher practical significance.
