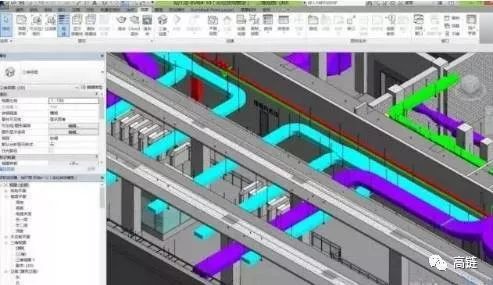

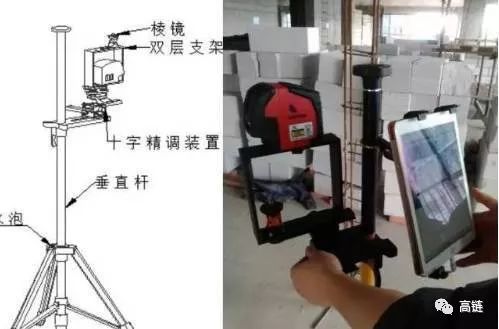

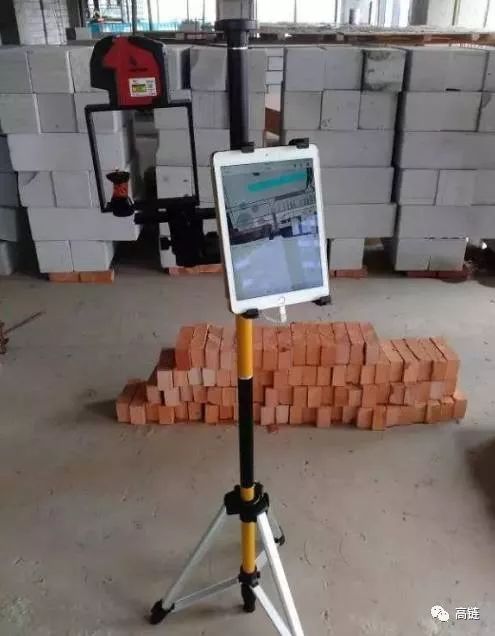

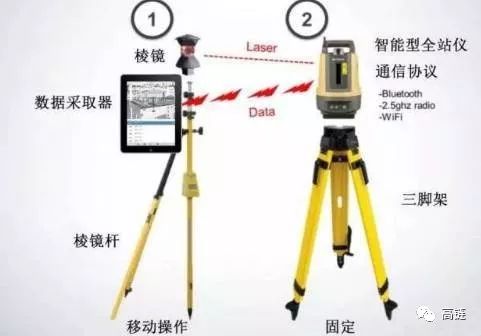

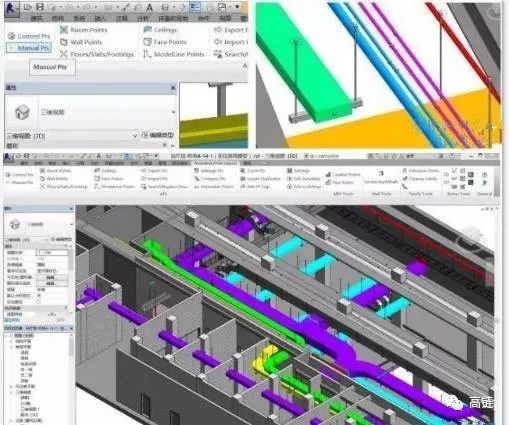

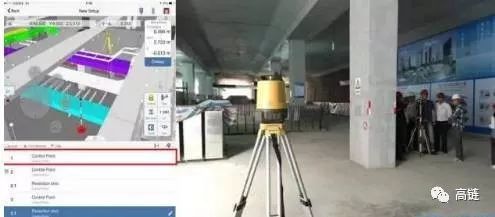

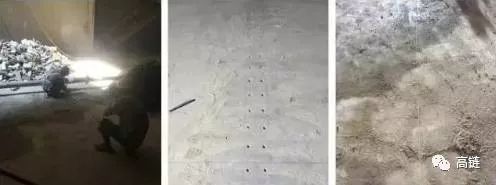

What is a BIM robot? BIM robots are based on BIM's on-site 3D laser measurement stakeout technology. It adopts the "BIM cloud platform data synchronization and BIM cloud link measurement" technology to realize the correspondence between the BIM model and the field components. Through the "laser marking prism rod system" technology, the prism projection point positioning speed and accuracy are improved, by "connecting the tablet" The technology with the prism rod device realizes that the 3D measurement technology can be completed by one person. How to play BIM robots Firstly, through BIM modeling, the model is optimized and collision checked. After the model can be used, the attachments of the electromechanical pipelines and other accessories can be set according to the specifications and site requirements, so that the model can meet the construction standards. Lofting as a model Sync to mobile interface Use the audited construction model to establish a positioning and lofting model. Create a virtual coordinate system on the model and set up control points. Then determine the points that need to be positioned, such as the hanger mounting point, the center position of the water pipe or the air duct, etc., in the model, place the lofting positioning points according to different professional pipeline requirements, form a lofting positioning model, and upload to the cloud, the IPAD can be synchronized. simulation. Prism rod system (projected to ceiling plane) The BIM robot is used to set up the station, and the prism rod system is assembled in order, and the position of the prism and the laser paying instrument is selected according to the working surface where the positioned point is located. The prism rod system cooperates with the laser pay-off instrument, and combines the position of the virtual prism positioned by the “measurement loft application†to move the prism rod to the vicinity of the positioning point, and the virtual prism in the software is coincident with the positioning point by fine adjustment. The position of the prism is the exact position of the positioning point in the model at the scene. At this time, the laser beam emitted by the laser line is the position of the positioning point on the field. Where is the BIM robot? Traditional measurement methods, whether it is theodolite, total station, GPS measurement, and relative position measurement technology, require analysis and data calculation before the measurement and positioning, and require multiple people to write. In addition, the traditional methods can not establish effective links with the BIM model, it is difficult to ensure that the model is consistent with the on-site components, and the BIM technology is greatly reduced in the design, construction, operation and maintenance phases. The robot realizes the control of the consistency between the BIM model and the on-site components, and fills in the blank of the accurate positioning of the on-site components by the BIM model at home and abroad, so that the BIM model can be more effectively applied to deepening the stages of design, construction, operation and maintenance, and construction. The process is simple, the work efficiency is high, the cost is low, the safety, the energy saving and the environmental protection. Incremental Encoder,Linear Scale Encoder,Dual Concentric Rotary Encoder,Dc Servo Motor Encoder Yuheng Optics Co., Ltd.(Changchun) , https://www.yuhengcoder.com
