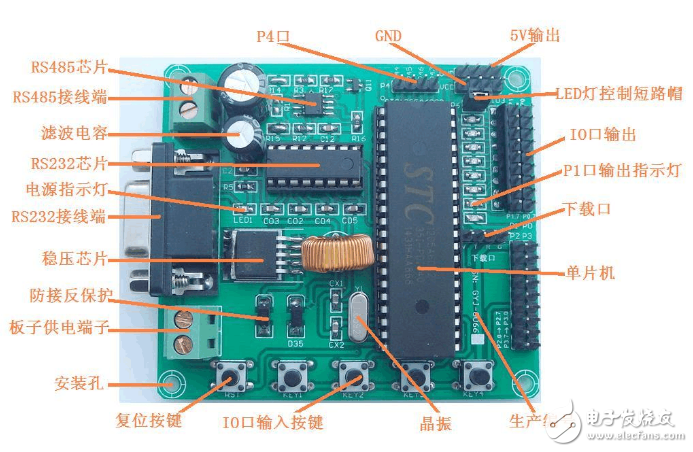

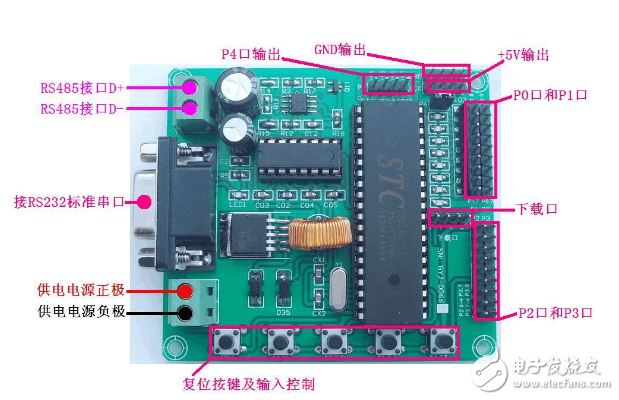

Among the many 51 series MCUs, it is more competitive for the domestic STC company's 1T enhancement series, because it is not only fully compatible with the 8051 instructions and pins, but also has a large-capacity program memory on the chip and is a FLASH process. For example, the STC12C5A60S2 MCU comes with up to 60K FLASHROM. The memory user of this process can be erased and rewritten instantaneously by means of electricity. And STC series MCU supports serial program programming. Obviously, this kind of single-chip computer has low requirements for development equipment and the development time is also greatly shortened. Programs written into the microcontroller can also be encrypted, which in turn protects your work. 1. With power indication; 2. All I/O ports have been elicited; 3, can achieve communication with the computer serial port; 4, can achieve RS485 communication; 5, with power-on reset and manual reset; 6, LM2596 wide voltage regulator chip; 7, support STC serial port download and UART port download; 8, serial communication (Note: can only use the download program); 9, eight-way LED lights (Note: can pull out the short-circuit cap, disconnect the LED lights); 10, can be terminal wiring power supply, can be pinned to lead; 11, the input voltage range is wide, and ensure that the AD reference voltage is accurate (Note: because there is no external reference voltage point) Related information recommended download >>>>>>>>STC12C5A60S2 streamlined development board manual and its classic routines Related information recommended download >>>>>>>>STC12C5A60S2 streamlined development board information Daquan Related information recommended download >>>>>>>>STC12C5A60S2 streamlined development board schematic Related information recommended download >>>>>>>>STC12C5A60S2 streamlined development board product manual
Incremental encoders provide speed, direction and relative position feedback by generating a stream of binary pulses proportional to the rotation of a motor or driven shaft. Lander offers both optical and magnetic incremental encoders in 4 mounting options: shafted with coupling, hollow-shaft, hub-shaft or bearingless. Single channel incremental encoders can measure speed which dual channel or quadrature encoders (AB) can interpret direction based on the phase relationship between the 2 channels. Indexed quadrature encoders (ABZ) are also available for homing location are startup.
