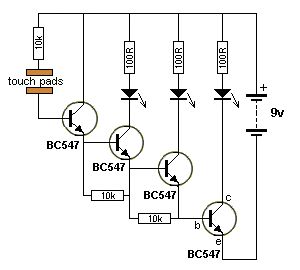

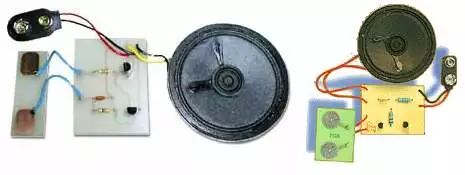

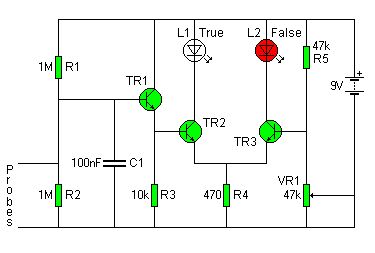

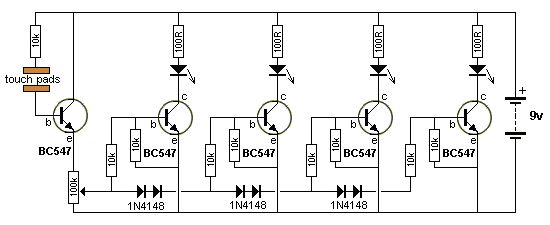

Let's take a look at a few interesting "polygraph" small circuits, their principle is to detect the skin resistance between fingers. Polygraph circuit 1 This circuit detects the resistance between your fingers to produce oscillation. A dry finger will detect a resistance of up to 100,000 ohms, which will cause the circuit to oscillate at a low frequency. If the subject feels nervous, he will sweat, which will lower the resistance of the skin and make the circuit oscillating frequency higher. The circuit shown in the photo is built into the PC board with a separate touch pad. Polygraph circuit 2 This circuit detects the resistance between your fingers and will cause the FALSE LED to light if the skin resistance drops. 47K adjustable resistor can adjust the sensitivity of the probe when it touches the finger. Polygraph circuit 3 This circuit detects the resistance between your fingers and uses 4 LEDs to show the change in resistance. When you press the detection electrode hard, it will make more and more LED indicator lights. Polygraph circuit 4 This circuit detects the resistance between your fingers. When you press the detection electrode hard, more and more LED indicators light up. This circuit is simpler than the polygraph 3 circuit.
