There is a saying that the router will be the entrance to the future smart living room. For this reason, major manufacturers are sparing no effort to launch so-called smart routers. The basic approach is to add a simple setup interface, convenient management functions, and rich extension functions to the original router functions... Hikvision The company's smart hardware manufacturer Fluorite also recently launched the W1 Smart Router (hereinafter referred to as Fluorite W1) for 139 yuan. What kind of products will be brought to us by Hikvision, who is committed to security solutions? And look at Tencent home appliance evaluation.
Black appearance simple design
Routers have always been silent underground workers, and are rarely put on the table, so the previous manufacturers are also more casual in the design, basically all adopt the same shape. With the increasing popularity of smart routers, under many impetuses, the appearance of routers has gradually improved. It is divided into two directions, more professional overall design, or more convenient and concise style. The fluorite W1 belongs to the latter.
The antenna of the router is a 5DBI antenna. The horizontal adjustable angle is 180°. After the expansion, the relevant back interface is used.
The bottom of the router is densely distributed with cooling holes. With the help of its overall low middle and high pebble shape, it has a certain space for heat dissipation when placed. The cooling effect is still possible.
Configuration generally focuses on security
Fluorite W1 adopts Broadcom's solution in its configuration, equipped with BCM5358B0 chip flash memory 16MB, storage is 128MB, supports 300M wireless signals. However, it is not equipped with the current mainstream Gigabit interface, but also does not support 802.11ac's 5GHz dual-band wireless transmission, it can be said to be slightly behind the current mainstream configuration. However, this is also related to the positioning of homes and the price of 139 yuan. It is more of an article on safety and low radiation that can easily adjust the WiFi signal strength.
In addition, there is smart home management in the menu, which can easily connect fluorite's more intelligent home and security equipment.
Signal stability can be set for visitors and low radiation patterns
In the following signal detection, we will use the common "WiFi overview 360" software to test, the router signal is set to the strongest "three walls" at the beginning, the data is for reference only.
The figure above shows the data measured from the signal source (fluorite W1) one meter and three meters, about one meter away from the router, the signal strength reached -45dBm, there is no large attenuation three meters away. Also achieved -51dBm, the performance is still very good.
In general, the WiFi signal is still fully covered in the daily use of the average family. At the same time can also take into account the safety and switch low radiation mode, the practical effect of fluorite W1 is still very good.
to sum up:
First of all, it is stated that the normal home routers in the market are generally low in electromagnetic radiation and are all lower than the national standard (40μW/cm2). It will not cause harm to the human body. We do not need to panic. However, in the situation where most routers only focus on high power, it is worthwhile to consider that fluorite W1 can make low radiation. Under the premise of ensuring basic requirements, it is better to avoid radiation.
In general, positioning the Fluorite W1 of the smart living router does not have a fashionable appearance, rich functions, and powerful performance. The mobile phone app section also needs to be improved; however, more attention is paid to safety and environmental protection, and the newly added guest mode and low radiation mode. Is its highlights, for the needs of users, the price of 139 yuan is still very cost-effective, you can consider buying.
Fluorite smart router evaluation: low radiation mode to adapt to new needs
The fluorite W1 machine is very simple, using a combination of mirror style and matte material design, black plastic shell, the lower left corner of the fuselage has a eZVIZ LOGO. The two antennas are initially folded into the back of the fuselage. Conspicuous on the fuselage are three red buttons, a WiFi switch, can be turned on and off in real time wireless; a WiFi enhancement, a key to enhance the WiFi; there is a one-button access, in fact, is the common WPS function.
On the interface, in addition to having a basic WAN port, a power interface, four LAN ports on the interface, there is also a USB2.0 interface for expansion, but the four LAN ports are 10M/ 100M adaptive port, not the current mainstream Gigabit interface, a bit sorry.
The interface setting of fluorite W1 is also very simple. After setting up the router, after a simple operation on the web management background, you can set up a route.
After setting the route WiFi name and password, we enter the background management interface. The entire setup interface is concise and easy to operate. The main interface shows the basic status of the router.
WiFi settings, you can adjust the pregnancy mode and through the wall mode, and set the appropriate time period. The pregnancies mode is low-radiation mode. It should be considered that in most cases, when we use the network at home, the distance is generally close, and low-power can also meet the demand; and the consideration of wall penetration is to meet the requirements of long-distance.
Among other tools, there are Qos settings, LAN settings, etc. However, although there are USB interfaces, they have not yet been added to the offline download extension functions. The security settings are relatively complete. Detailed service access restrictions and QoS settings can be performed through the MAC address or IP address. The time zone settings are also supported.

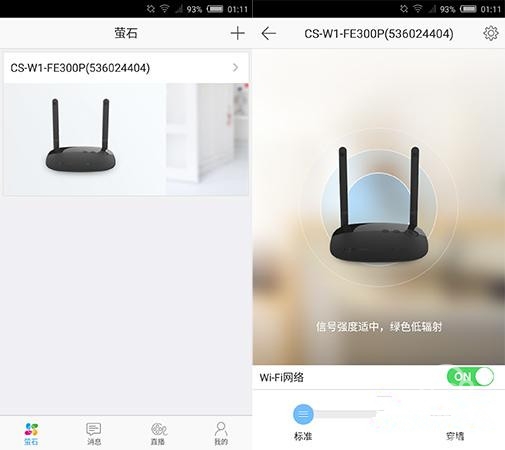

The mobile app is not a dedicated router application. Instead, it is a comprehensive application called "Flamestone Cloud Video." The router function only occupies a small part of it. At the same time, it only supports WiFi signals between the standard and the wall. Switch and WiFi switch function.
The next step is the basic wall-pass test. The picture above is provided separately from the bedroom of the signal source (fluorite W1) across a wall (three meters) and the bathroom separated by two walls (four meters). The data. Among them, the signal performance across a wall is still very good, can reach -66dBm, and there is no obvious attenuation; and in the two walls when there was significant attenuation, only -87dBm.

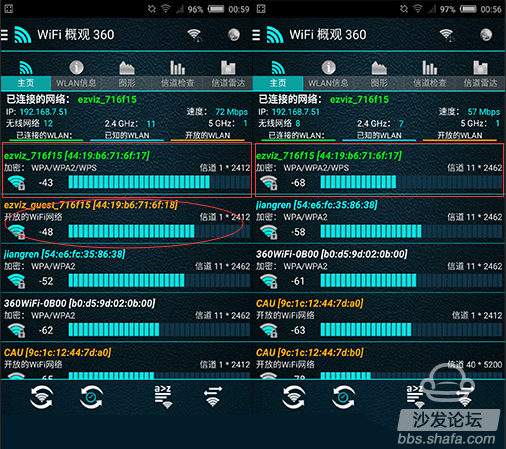

Finally, fluorite has a distinctive guest mode and low radiation mode test. The figure above shows the data measured in the case of one meter from the source (fluorite W1). When fluorite W1 is on a separate guest guest channel, the signal does not attenuate, and the signal strengths of the two are similar. Safe while also guaranteeing speed.
In the low-radiation mode, the signal is directly reduced from -45dBm to -68dBm, which is quite obvious. In general, -60dBm can basically reach the maximum speed of transmission, -68dBm can also meet the basic requirements, and it is also acceptable to lower the corresponding rate of radiation reduction.
