The MAX17085B provides an all-in-one power solution for notebooks with integrated multi-chemistry battery chargers, dual fixed-output QuICk-PWM? buck controllers, and dual uninterrupted linear regulators. This solution is capable of powering the system load while charging multiple chemical types of battery packs. During operation, the EV kit circuit automatically selects the ADAPTER input or battery as the main power source to power the system load and buck converter.
Basic characteristics:
Integrated charger with dual mains buck controller
5V/100mA and 3.3V/50mA LDO Regulators
main power
Dual Quick-PWM Controller with Fast Transient Response and Long On-Time
300kHz to 800kHz switching frequency
5V and 3.3V fixed SMPS output
Low noise ultrasound mode
Automatic retry fault protection
charger
High switching frequency (1.4MHz)
Choice of 2, 3 and 4 battery voltages
Automatic selection of system power
Built-in charge pump for driving n-channel MOSFET adapter select switch
Charging voltage accuracy is ±0.4%
Input current limit accuracy is ±2.5%
Charging current accuracy is ±3%
Monitor output for monitoring
AC adapter current (accuracy ±2%)
Battery discharge current (accuracy ±2%)
AC adapter ready state
Charge current can be set via analog/PWM (100Hz to 500kHz) signal
AC adapter overvoltage and overcurrent protection

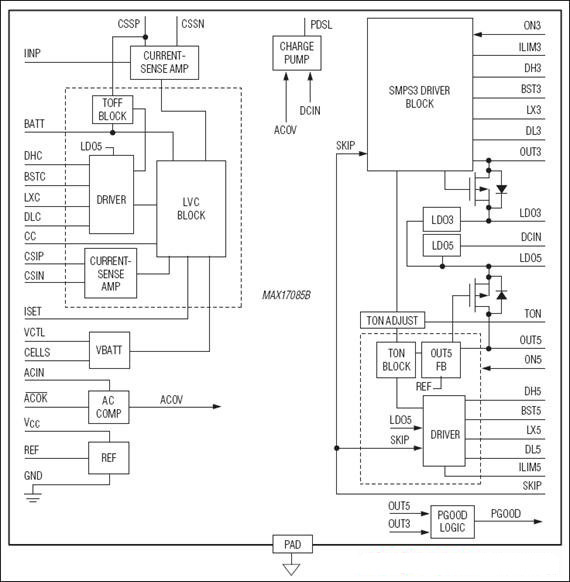

Device block diagram
Program features:
Charger: High-frequency (approx. 1.4MHz), multi-chemical battery charger uses a constant current mode architecture with constant current ripple, which greatly reduces component size and cost. The low offset voltage sense amplifier allows the use of small value sense resistors to sense the charge current and input current limit.
