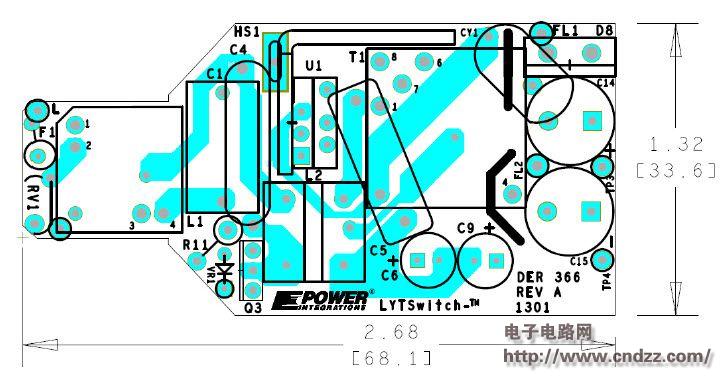

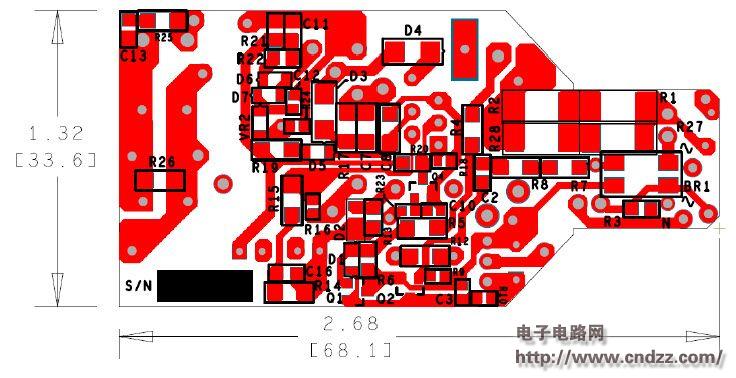

Summary: This document is an engineering report describing an isolated power factor dimmable LED driver (power supply) designed with the LYT4214E device LYT4314E. The DER-366 provides a 20 W (36 VTYPICAL) adjustable constant 550 mA current output with an input voltage range of 190 to 265 VAC. This document contains LED driver specifications, schematics, PCB design drawings, bill of materials, transformer specification files, and typical performance characteristics. 20W high efficiency TRIAC dimming LED driver PCB physical map 20W high efficiency TRIAC dimming LED driver circuit diagram 20W High Efficiency TRIAC Dimming LED Driver PCB Layout See the uploading documentation for details (click to download) Manual Motor Starter,Motor Starter,KNS12,China Motor Starter Wenzhou Korlen Electric Appliances Co., Ltd. , https://www.korlen-electric.com
20W high efficiency TRIAC dimming LED driver designed with LYT4314E, with circuit diagram, bill of materials, specification file, PCB
