Disassembly analysis report for Moto Z2 smartphone

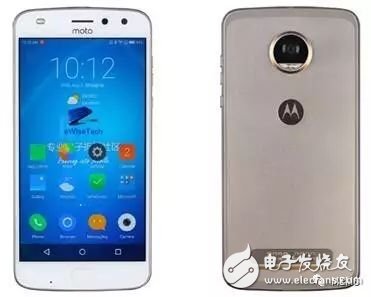

Moto Z2 Play smartphone with Qualcomm Snapdragon 626 eight-core processor (14nm process), operating system is based on Android7.1.1 developed ZUI3.0, equipped with 4GB memory +64GB flash memory, support SD card expansion. Bluetooth 4.2, 12 megapixel camera with laser focus assist.

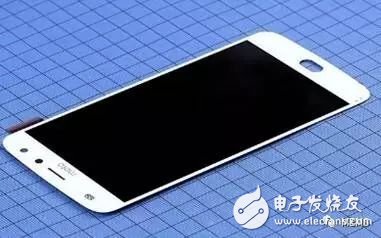

The Moto Z2 Play smartphone features a 5.5-inch Super AMOLED screen with a resolution of 1920x1080 and a protective glass with Corning Gorilla Protection Glass.

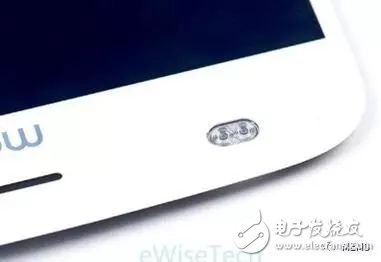

The Moto Z2 Play smartphone front camera features a dual color temperature flash.

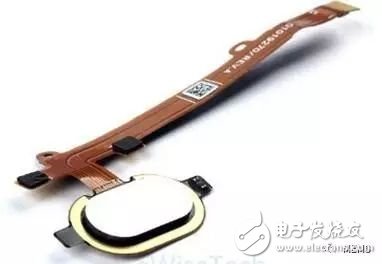

The Home button on the bottom of the Moto Z2 Play smartphone integrates the U-Touch for fingerprint recognition, and integrates the three King Kong buttons of the Android system. The system can also customize the button functions.

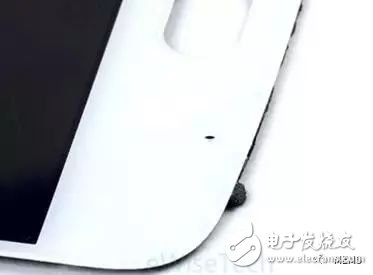

In addition to the Home button, there is a MEMS microphone on the front.

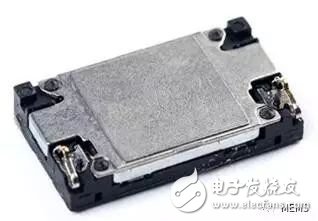

The relatively large volume of the earpiece is because the whole machine does not have a separate speaker, but the handset function of the handset produced by AAC Technologies at the top of the mobile phone is "part-time".

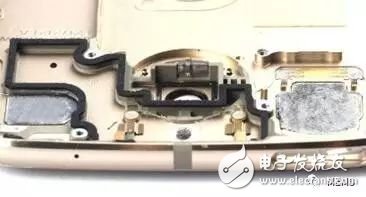

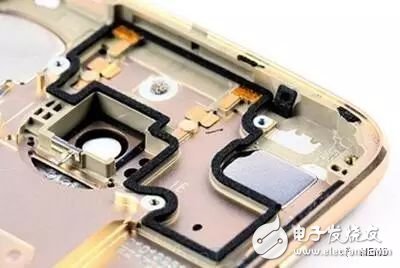

Although it is a "part-time job", it should not be a lot less, and there is a sound chamber in the back cover corresponding to the position of the earpiece.

The shape of the entire back cover is exactly the same as that of the Moto Z1. This is also to make the Moto Mods module introduced in the Moto Z1 available on the second generation. Eliminating the extra cost of changing a batch of Moto Mods modules.

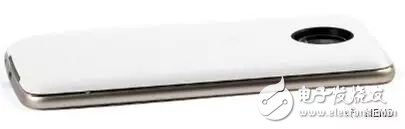

In order to fit the Moto Mods module, and to place a 12 megapixel rear camera in a 5.99mm thick body, the position of the camera is particularly prominent.

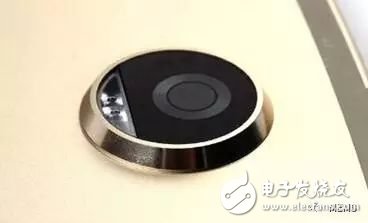

The main camera uses Sony's IMX362 sensor with 12 million pixels and a 6P lens with laser focus.

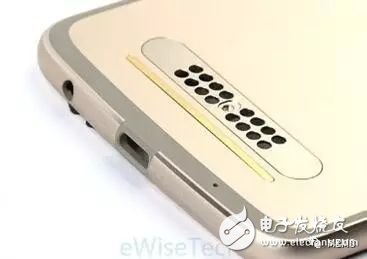

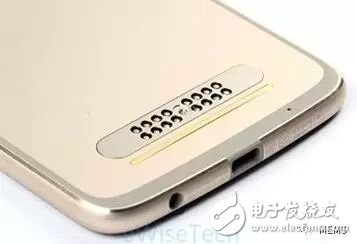

The bottom is the biggest feature of this machine. There are 16 modular magnetic contacts in two rows. The main function is to connect Moto Mods modules with different functions.

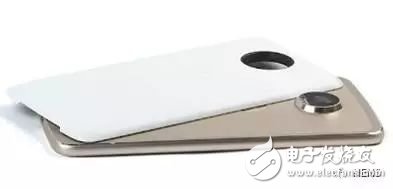

Since the battery capacity in the mobile phone is small, the battery module is indispensable in Moto Mods. Through the use of the discovery, when the battery module is taken, the battery will be full of "obsessive-compulsive disorder" every time it consumes one grid of electricity. When charging, the battery module will be fully charged before charging the battery module.

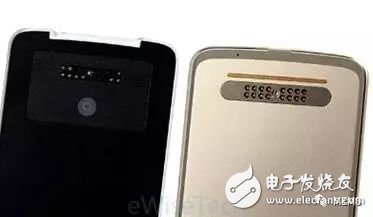

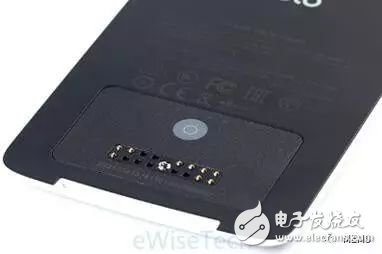

The position of the corresponding contact on the bottom of the battery module has 9 contacts for connection, perhaps identifying that the different modules are also associated with the distribution of these contacts. On both sides of the contact, two magnets are used to secure the phone.

In order to fix the module, a steel piece is placed on each of the left and right sides of the back cover for the adsorption module.

At the same time, there is a switch button above the contact of the battery module to conveniently view the current capacity of the battery module. It also avoids the trouble of using the battery module to charge the mobile phone, but only after the connection is found that the battery module is zero.

The antenna of the Moto Z2 Play uses an intelligent closed-loop tuned antenna. A circle of contrast material is used around the entire back cover.

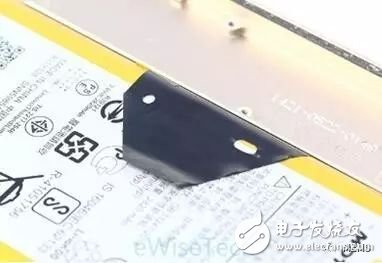

The battery is fixed by double-sided tape. The pull tabs allow easy removal of the battery.

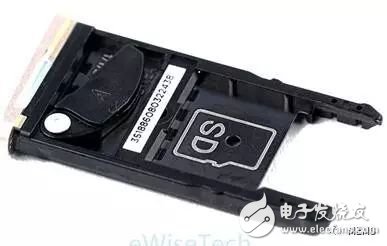

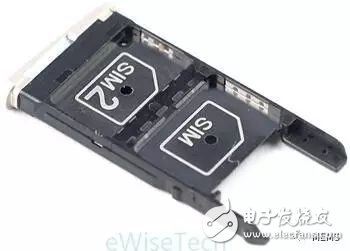

The SIM card slot of the Moto Z2 Play is a double-sided card that can hold two SIM cards on the front and one SD card on the back.

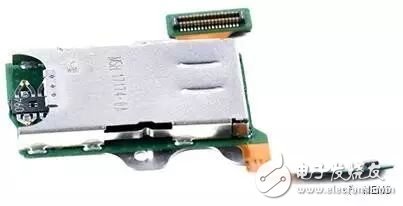

Moto Z2 Play is not only designed to connect a variety of smart modules, but also has a number of internal components as separate modules. The card slot module is one of them, and a separate module is connected to the motherboard through the BTB interface.

There is also an electronic compass sensor next to the card slot module.

The handset module is also a separate module.

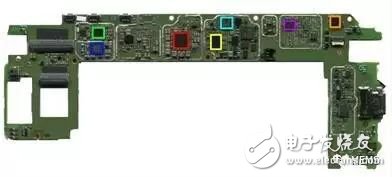

Main chip of Moto Z2 Play smartphone motherboard: main IC on the front of the motherboard (below):

Red: Qualcomm-PM8953-Power Management Yellow: Cirrus Logic-CS47L35-Audio Codec Orange: Unknown-Unknown-Fingerprint Identification Green: Qualcomm-WCN3660B-Wi-Fi, Bluetooth, FM, GPS Blue: NXP-Unknown-NFC Controller Purple : SKYWORKS-SKY77651-21-Power Amplifier cyan: SlimPort-ANX7805-SlimPort Transmitter main IC on the back of the motherboard (below):

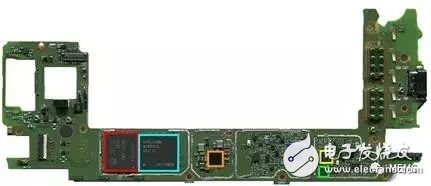

Red: Samsung-KMRC10014M-B809-eMMC64GB ROM+LPDDR3 4GB RAM Orange: QUALCOMM-PMI8952-Power Management Green: Skyworks - SKY77360-12-Power Amplifier Blue: QUALCOMM-WTR3925-RF Transceivers Cyan: QUALCOMM-MSM8953-8-Core Application Processor and Baseband Processor Yellow: Skyworks-SKY77652-11-Power AmplifierMoto Z2 Play Smartphone motherboard use Logic, Memory, PM, RF and MEMS chip usage information as shown in the following table:

Summary: The whole machine is made of metal and fixed with a large amount of sealant on the screen. The front and rear cameras are equipped with a dual-temperature flash, and the rear camera is very prominent. The bottom of the back cover has 16 contacts (23K gold plated) for connecting various modules, and the whole machine is highly modular. It is worth mentioning that today's major manufacturers of mobile phones use black motherboards, while Moto Z2 Play still uses the green motherboard. Product technical analysis services: First: machine analysis report: product technology highlights, parameter information, packaging specifications, machine appearance, disassembly steps, motherboard / soft board analysis, battery / camera / display analysis, cost reference information. Two: IC device analysis report: package level analysis, device process analysis, material structure analysis, reliability / failure test.
