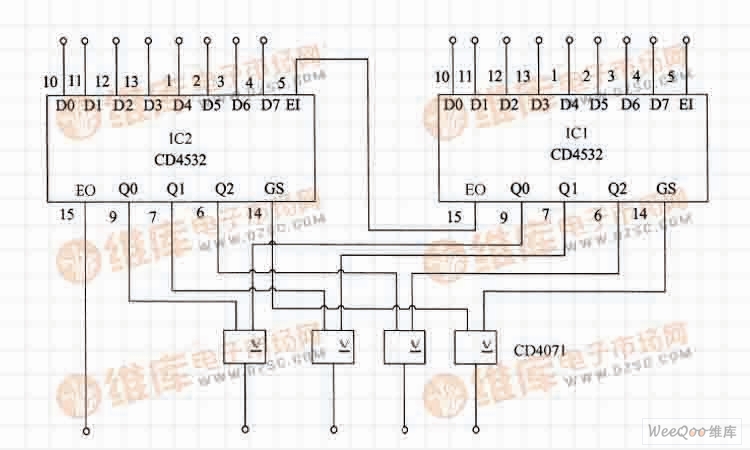

As shown in the figure, a 16-stage priority encoding circuit composed of an 8-bit priority encoder CD4532 and a quad 2 input terminal or a gate CD4071 is mainly used in a digital system. 16-level priority coding circuit In the circuit diagram, a combination of two CD4532 and OR gate CD4071 is connected into a 16-stage encoder. IC1 acts as a high-order encoder and IC2 acts as a low-order encoder. The permissible output EO of the upper encoder is connected to the permissible input EI of the lower encoder.
This PS5 docking station have several design, some come with AC adapter with UL certificates, some soem with Type-C adapter,all docking are hiqg quality with CE FCC RoHS.
Features:
Ps5 Charging Dock,Ps5 Charging Dock Station,Portable Ps5 Charging Station,Ps5 Charging Dock Stand Shenzhen GEME electronics Co,.Ltd , https://www.gemesz.com
When any input of IC1 has a signal input, its EO output is low, and the input of the El terminal of IC2 is also low. At this time, IC2 does not work, and the input signal of the high-order encoder is encoded. When there is no signal input at any input of IC1, its EO output is high, and the input of the El terminal of IC2 is also high. At this time, IC2 works normally and can be encoded.
